APPLICATIONS

Disinfection Drying

  • ASF Disinfection Drying
  • Farm Material Drying & Disinfection

ADVANTAGES

  • Compared with traditional space heaters, the combustion air comes from outside instead of inside, so there is no oxygen deficiency in the drying room;
  • Simple installation and operation;
  • All the heat energy released by combustion will enter the drying room without flue loss;
  • Quick solution for heating drying rooms;
  • Easy to control with a thermostat;
  • Excellent reliability and durability;
  • Easy to maintain.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

The thermostat calls for heating, the circulating fan starts, and the ignition control system starts to ignite and burn. The combustion products are mixed with the heated circulating air and sent to the heated space to achieve the purpose of heating.

The heater has an open combustion chamber, which means that all the heat from the combustion gases goes into the room, ensuring 100% heater efficiency.

  • World’s first innovation of direct-fired dual positive space heater
  • It has two separate blowers, one is a combustion blower, another is a circulating fan. So combustion air can be drawn in from outside therefore no hypoxia happens.
  • Natural gas or LPG.
  • Rates 270/340 x1,000 Btu/hr or 80/100kW.
  • The 12VAC low-voltage ignition controller, specially developed for HVAC industry, all troubleshoots can be easily identified by the indicator lights.
  • Safer and reliable low-voltage 24 VAC combination gas valve with 100% shut off.
  • Flameout protection, fan malfunction protection, and overheating protection.
  • Outdoors installation.

Case example:

1. Design conditions:

The length, width and height of the drying room are 16m, 6m, and 4.6m respectively; the surrounding of the drying room is made of rock wool sandwich panels, and the roof is made of rock wool board ceiling; the minimum outdoor temperature in winter is 0°C.

2. Design requirements

The overall time for high-temperature disinfection of vehicles is 40 minutes, the time required to heat up to 70 °C is controlled within 10 minutes, and the temperature above 70 °C is maintained for 30 minutes.

3. Equipment selection
3.1 Heater selection: the minimum outdoor temperature is 0°C, and the indoor temperature is required to be 70°C, then the overall temperature rise is 70°C; the room space volume is 16*6*4.6=441.6m³, and the thermal insulation coefficient is 2.7 (this coefficient is conservative considering the heating and heat absorption of the wet vehicle itself), the required heat load = 441.6*70*2.7=83kW, that is, the heating space needs 83kW of heat per hour, and the designed heating time is 10 minutes, then the required heat load is 83*60÷ 10=498kW, the heat load of each equipment is 80kW, then 498÷80=6.225, it is recommended to choose 6 sets of 80kW equipment.
3.2 Heat recovery Ventilator selection: In order to shorten the drying time, it is necessary to discharge the air with high temperature and high humidity to the outside; considering the large temperature difference between indoor and outdoor, heat recovery ventilators needs to be added to solve the contradiction between dehumidification and energy consumption. After calculation, two 2,500m³/h heat recovery devices and six 80kW heaters were selected to match.
3.3 Rear exhaust fan selection: In order to dry the inside of a closed vehicle, four 36″ high-temperature explosion-proof fans are specially selected and installed at the rear of the vehicle to blow air into the vehicle for heating and drying.

Typical Layout of ASF Disinfection Drying Station

APPLICATIONS

  • Factories & Manufacturing
  • Distribution Centers
  • Warehouses
  • Repair shops
  • Superstores.
  • Industrial ovens

ADVANTAGES

  • Reduces heating and cooling costs by up to 80% while protecting the internal climate and increasing comfort;
  • Keeps the atmosphere clean from pests and insects, dust, airborne, pollution, smells and odours, and stops drafts and cold or hot air from entering.
  • Increases production and transportation efficiency without the need for frequent opening and closing of doors.
  • Enhanced safety without solid material blockage of doors.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

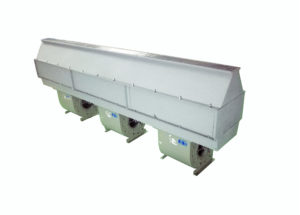

A direct-fired air curtain works just like a direct-fired space heater. A directionally controlled high velocity airstream, moving across the entire height and width of an opening, which reduces the infiltration or transfer of air from one side of the opening to the other and/or inhibits flying insects, dust or debris from passing through.

  • 35kW-1.5m/50kW-2.25m/70kW-3m/120kW-4.5m
  • Powerful centrifugal blowers delivering high-velocity airstream
  • Semi-enclosure or full-enclosure equipment available
  • Horizontal or Side installation configurations available
  • Can be interlocked with door opening&closing

To select an air curtain the following factors should be kept in mind:

  • The height of the installation measured from the discharge diffuser to the floor
  • The width of the door
  • The location of the building to determine the level of protection needed against weather conditions (temperature, humidity and wind)
  • If the building has several doors in the same area, different or opposite façade
  • If the building has several storeys connected by escalators/stairs
  • Pressure differences between the inside and outside of the building
  • Door compatibility: Always open, automatic open, manual open, revolving door, etc.
  • Characteristics of the ventilation and air conditioning installation
  • Voltage and electrical power availability
  • Type of business, style and decoration of the premises
  • Free hanging or recessed, horizontal or vertical installation, heated or unheated, etc.

The information within this section has been designed as a ‘quick check’ for non-technical
stakeholders to confirm that their air curtains have been installed in an appropriate and functional
way. These checks are not comprehensive and should not replace the manufacturer’s installation
instructions.

HOW FAR IS THE AIR CURTAIN FROM THE DOOR HORIZONTALLY?

An air curtain should be installed close enough to the opening to prevent heat loss from cold air entering the space or vice versa for cold room applications. As shown in the diagram below, in an ideal installation, there would be no separation horizontally between the opening and the air curtain. However, the air curtain can still be effective provided the separation is within 50 cm.



HOW FAR AWAY IS THE AIR CURTAIN FROM THE DOOR VERTICALLY?

Ideally, the outlet of an air curtain is installed directly above the opening it is designed to protect.
If an air curtain is installed too far above the opening, the result will be one of the following
two outcomes: the air curtain may not be fully effective or a larger more powerful unit may be
required. Both these outcomes are a consequence of the energy required to create and maintain
the jet of air across the opening. As a general check, unless the additional height has been taken
into consideration, a vertical separation of up to 50 cm is acceptable



DOES THE AIR CURTAIN COVER THE ENTIRE WIDTH OF THE DOOR OPENING?

In an appropriate installation, the stream of air generated by the air curtain should cover the entire
opening it has been installed to protect. If the air curtain is oversized, it will use additional energy
without providing any additional benefit to the consumer. If the air curtain is undersized, it cannot
create an air stream large enough to fully protect the opening it has been installed above, leading
to increase space heating or cooling costs as a result of infiltration.



APPLICATIONS

Agricultural Heating Use

  • Poultry houses

ADVANTAGES

  • No flues are needed in the poultry house, thus no CO2 and no water vapour are released into the poultry house.
  • Low ventilation outside, which saves energy.
  • Save an average of 23% energy costs compared to direct fired space heater
  • Lower down 15% humidity, meaning poultry house remains drier
  • Lowers poultry mortality
  • Easy installation, no need to monitor flue gas in poultry house
  • Easy to use and clean
  • Insurance fee is low
  • Exterior combustion air is preheated by exhaust flue
  • Made with stainless steel

INQUIRE ABOUT PRODUCT

HOW IT WORKS

A unit heater is a stand-alone appliance serving to heat a given space and is capable of operating on propane or natural gas.

The equipment usually includes a heat exchanger, through which a fan blows air from the room to be heated.

  • Natural gas or LPG.
  • Rates 200/270/340 x1,000 Btu/hr or 60/80/100kW
  • Inshot burner makes the combustion more complete with lower CO and NOx.
  • Closed combustion system and specially designed for poultry house
  • Heat exchanger made by aluminized steel or stainless steel pipes.
  • Reliable Direct Spark Ignition.
  • The 12VAC low-voltage ignition controller, specially developed for HVAC industry, all troubleshoots can be easily identified by the indicator lights
  • Safer and reliable low-voltage 24 VAC combination gas valve with 100% shut off.
  • Flameout protection, fan malfunction protection, and overheating protection.
  • Special baffles in the heat exchanger can enhance heat exchange efficiency.

Heating Power (Recommendation only):

Minimum heating power(kW)=Poultry house volume(m³)*0.07kW/m³

Considering small temperature difference in a poultry house, a typical 100m*12m broiler house needs 400kW thermal input or 4 sets of KWIH100 heaters while 120m*12m broiler house needs 6 sets of KWIH100 heaters.

Here are some criteria to consider in installing the units:

  • Installation height;
  • Positioning;
  • Warm air circulation;
  • Venting: combustion products are usually vented outdoors.

                                       Typical layout of KWIH heaters in a broiler house

APPLICATIONS

Industrial Heating Uses

  • Warehouses
  • Factories
  • Auto repair shops
  • Churches
  • Gymnasiums
  • Drying process

Agricultural Heating Uses

  • Swine farms
  • Poultry houses
  • Greenhouses

Outdoor Heating Uses

ADVANTAGES

  • Annual natural gas and propane consumption savings of up to 25-35% compared with traditional warm air systems.
  • No need for a heat-distribution system.
  • High comfort level, recommended even in places with drafts and high ceilings.
  • Easy maintenance, without moving parts such as fans or blowers.
  • Simple to control with a commercial or digital thermostat.
  • Superior efficiency thanks to direct heating; no loss of heat through piping.
  • Reduced air stratification.
  • Sensation of instant heat.
  • Quiet operation.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

A low intensity infrared unit heats by radiant heat. The energy is spread by radiation: its effect on the human body is rather like being exposed to the sun. Like the light from a lamp, infrared radiant heat is directional and warms every object in its path, depending on the nature of its surface. The infrared radiant heat traverses the ambient air without losing its energy until the moment it meets an object.

Primary and secondary air and gas mix into the burner cup to create a long flame combustion in the radiant tube. The radiant surface temperature can reach 500°C but the far end radiant tube’s temperature is lower than 200°C.

  • A blower at the burner side pushes air to mix with gas to combuste and exhaust the flue at the end of the radiant tube. Combustion chamber is positive.
  • Natural gas or LPG.
  • Rates 10/20/35/40/50kW
  • Radiant tube length of 3/6/9/12/15/18 meters are available in straight, U and L configurations
  • Positive or Vacuum system available.
  • Powder coated steel or stainless steel burner.
  • Heat treated aluminized steel radiant tube.
  • Reliable Direct Spark Ignition with 100% gas valve shut off.
  • High-polished aluminum reflector maximizing radiant efficiency (Keywarm is 100% reflection). Side or bottom reflector available.
  • Two stage or modulating burner available upon request.
  • Horizontal or 45° reflector mounting.

Heating Power:

  • Warehouse: 80-110 W/㎡
  • Factory: 120-180 W/㎡
  • Pig House: Volume(m³)*0.04(kW/m³)

  • Poultry House: Volume(m³)*0.07(kW/m³)

Combustion: Sealed combustion (the combustion air is taken directly from the space to be heated or from outside).

Venting: The combustion products can be vented indoors or outside.

  • Minimum height to be respected, according to each manufacturer.
  • Installation is not recommended in places where there are chlorine products, solvents or explosives, but certain models are suitable for that type of environment.
  • The combustion products are vented indoors with additional ventilation. Usually, this calls for an interlock between the appliance and a mechanical extractor fan. A fresh air supply unit needs to be installed in order to maintain an acceptable level of CO2 (5,000 ppm). For more details, consult the manufacturer’s Installation Guide.
  • The ventilation rate stipulated in Code B 149.2 is 300 ft3 of air per minute per 100,000 Btu/hr or each kW per 22m³/h fresh air of low intensity infrared installed.

APPLICATIONS

Industrial Heating Uses

  • Warehouses
  • Factories
  • Auto repair shops
  • Churches
  • Gymnasiums
  • Drying process

ADVANTAGES

  • Annual natural gas and propane consumption savings of up to 25-35% compared with traditional warm air systems.
  • No need for a heat-distribution system.
  • High comfort level, recommended even in places with drafts and high ceilings.
  • Easy maintenance, without moving parts such as fans or blowers.
  • Simple to control with a commercial or digital thermostat.
  • Superior efficiency thanks to direct heating; no loss of heat through piping.
  • Reduced air stratification.
  • Sensation of instant heat.
  • Quiet operation.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

A low intensity infrared unit heats by radiant heat. The energy is spread by radiation: its effect on the human body is rather like being exposed to the sun. Like the light from a lamp, infrared radiant heat is directional and warms every object in its path, depending on the nature of its surface. The infrared radiant heat traverses the ambient air without losing its energy until the moment it meets an object.

Primary and secondary air and gas mix into the burner cup to create a long flame combustion in the radiant tube. The radiant surface temperature can reach 500°C but the far end radiant tube’s temperature is lower than 200°C.

  • A blower the end of the radiant tube “pulls in” air from the burner at the front to mix with the gas, and the burned flue gas passes through the radiant tube and is finally discharged from the same blower at the end. The combustion chamber is a negative pressure, so it is called a vacuum system;
  • Natural gas or LPG;
  • Rates 10/20/35/40/50kW;
  • Radiant tube length of 3/6/9/12/15/18 meters are available in straight, U and L configurations;
  • Multiple burners can also share a fan to realize the combination and arrangement of various radiant tubes, which is convenient to cover the heating area and reduces the number of wall holes passing through the exhaust gas;
  • Powder coated steel burner housing;
  • Heat treated aluminized steel radiant tube.
  • Reliable Direct Spark Ignition with 100% gas valve shut off.
  • High-polished aluminum reflector maximizing radiant efficiency (Keywarm is 100% reflection). Side or bottom reflector available.
  • Horizontal or 45° reflector mounting.

Heating Power:

  • Warehouse: 80-110 W/sqm
  • Factory: 120-180 W/sqm

Combustion: Sealed combustion (the combustion air is taken directly from outside but mostly from the space to be heated)

Venting: The combustion products can be vented indoors or outside but mostly outside for multiple burner system.

  • Minimum height to be respected, according to each manufacturer.
  • Installation is not recommended in places where there are chlorine products, solvents or explosives, but certain models are suitable for that type of environment.
  • The combustion products are vented indoors with additional ventilation. Usually, this calls for an interlock between the appliance and a mechanical extractor fan. A fresh air supply unit needs to be installed in order to maintain an acceptable level of CO2 (5,000 ppm). For more details, consult the manufacturer’s Installation Guide.
  • The ventilation rate stipulated in Code B 149.2 is 300 ft3 of air per minute per 100,000 Btu/hr or each kW per 22m³/h fresh air of high intensity infrared installed.

APPLICATIONS

Agricultural Heating Uses

  • Swine farms
  • Poultry houses
  • ASF disinfection drying system

ADVANTAGES

  • Substantially reduce fuel consumption during heating time;
  • Energy saving is between 30% and 60%;
  • Air temperature is uniformly distributed, and flocks evenly scattered;
  • Reduces ammonia and carbon dioxide, improving the air quality of breeding houses;
  • Keeps feces dry, reduces need for bedding materials, decreases pseudo-podium and hock burns;
  • Increases weight and FCR;
  • Positions control for air exchange to avoid heat loss.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

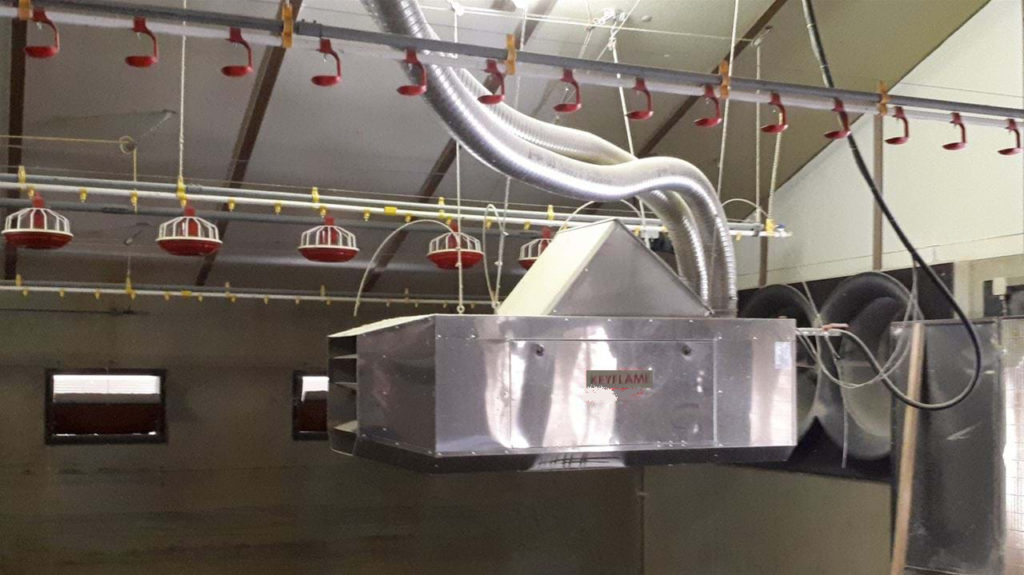

This product is developed as a sustainable solution for the animal husbandry industry. By integrating the function of air intake and air exhaust, it is particularly suitable for environments which need a large amount of fresh air from outside. Meanwhile, it greatly improves the breeding environment and effectively solves the contradiction between ventilation and heat loss.

There are two fans inside of the heat recovery ventilator, one discharges the humid air in the room while another intakes fresh cold air from outside. When hot air and cold air passes through the heat exchange core, the fresh air is preheated, which can reduce the cost of heating and minimize cold stress.



  • Air flow: 2×2,500m3/hr
  • The box material is Zinc Aluminum Steel;
  • Both air inlet and outlet are filtered by primary filter (easy disassembling and cleaning) to prevent blockage of the heat exchange core and guarantee the quality of fresh air from outside;
  • Aluminum alloy spherical air outlet is adopted for the fresh air inlet, with the long distance of airblowing, omnidirectional wind can be adjusted with 180-degree angle, ensuring no dead point of air supply;
  • Excellent heat transfer performance and high heat transfer efficiency, special anti-corrosion treatment, durable, easy to disassemble and clean;
  • The exhaust fan and inlet fan can tolerate multiple environments, like high-humidity and corrosion breeding houses;
  • Automatic defrost prevents the heat exchange module from being blocked, and the defrost time can be set automatically according to the actual temperature conditions;
  • Fitted with an environment controller which can be automatically turned on and turn off;
  • Solid and reliable structure, easy to disassemble and repair.

Select the number of heat exchangers at the maximum load to meet the minimum ventilation for Stage 1 and/or Stage 2. For all-in, all-out livestock houses, this varies as the animals grow. Determine the number of heat exchangers (maximum airflow) by adult animals and run the appropriate number of heat exchangers (reduced airflow) for young animals.

The biggest challenge facing heat exchanger application in a poultry house is the amount of dust
encountered in the air. Dust in the exhaust airstream, if not handled properly, will degrade the
performance of any heat recovery system. Proper handling of dust is critical to the success of a heat
recovery system application. Traditional flat­plate heat exchangers require upstream filtration systems
on the warm exhaust air side to intercept the dust (from indoor air) before it enters the heat exchangers.
After a grow­out, exchanger cores need be cleaned using compressed air or water, depending on the
equipment designs. Regular cleaning effectively removes dust and rejuvenates the cores.

APPLICATIONS

Agricultural Heating Uses

  • Swine houses
  • Poultry houses

ADVANTAGES

  • Easy to use and cost-effective.
  • Simple installation and operation.
  • All thermal energy used will come into the broiler house and there are no flue losses
  • Quick solution for heating livestock barns.
  • No need for a heat distribution network.
  • Simple to control with a thermostat or most environmental controllers.
  • Exceptional reliability and durability.
  • Easy maintenance.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

The thermostat calls for heating. The circulation fan starts and the ignition control system starts to ignite and burn. The combustion products are mixed with the heated circulating air to achieve the purpose of heating.

The air heater has an open combustion chamber, which means that all the heat from the combusted gas enters the room, ensuring 100% heater efficiency.





  • Natural gas or LPG.
  • Rates 100/170/240 x1,000 Btu/hr or 30/50/70kW.
  • The 12VAC low-voltage ignition controller, specially developed for HVAC industry, all troubleshoots can be easily identified by the indicator lights.
  • Safer and reliable low-voltage 24 VAC combination gas valve with 100% shut off.
  • Flameout protection, fan malfunction protection, and overheating protection.
  • Indoors or outdoors installation.
  • Heating power of pig house(kW)=volume(m³)*0.04kW/m³
  • Heating power of poultry house(kW)=volume(m³)*0.07kW/m³
  • The temperature in a house with a well-designed forced-air space heating system is relatively uniform from floor to ceiling and around the house. Poultry houses and pig houses commonly are rated 30kW to 70kW. The industry standard is to provide around six to eight heaters in a 120 long broiler house, rather than four large heaters. This improves heat distribution in the house.
  • Large heaters are only marginally more expensive than units with half the kW capacity, so it is common to over-design for houses that will contain brooding chicks.
  • Space heaters operate at low gas supply pressures. Heated air is distributed with the heater fan and through mixing with the incoming ventilation air jet. Maintaining warm temperatures near the floor during early brooding is a common problem with space heaters.
  • Broiler management guidelines recommend starting air temperatures of 32–35°C at day 1. Every day thereafter, the guidelines recommend decreasing air temperature incrementally until a final temperature of 19–21°C is reached at around day 27 and maintained for the remainder of the growout.
  • Most space heaters use interior air and are unvented, which means they exhaust carbon dioxide, moisture, and incomplete combustion products directly into the building. Approximately 1.7 kg of water vapor is produced per kg of propane gas combusted. Thus, to prevent moisture accumulation caused by unvented heaters, it is recommended that minimum ventilation rate be increased by 14.5m³/h per kW heater capacity.
  • Stir fans are commonly installed near the ceiling to circulate this hot air back to the litter where it is useful to chicks. In some instances where adequate temperatures cannot be maintained, both space and radiant heat systems are used.
  • Thermostat location is important to maintain uniform temperature and energy savings.

APPLICATIONS

Agricultural Heating Uses

  • Swine houses
  • Poultry houses

ADVANTAGES

  • Outdoor installation, no gas leak worries
  • No indoor space occupied
  • Biosecurity due to service&repair outdoors
  • Energy saving and temperature even due to circulation air return near ceiling while warm air blown out near the floor
  • Combustion air from outside, no hypoxia or incomplete combustion, no extra ventilation needed

INQUIRE ABOUT PRODUCT

HOW IT WORKS

The thermostat calls for heating. Circulation fan starts and the ignition control system starts to ignite and burn. The combustion products is mixed with the heated circulating air to achieve the purpose of heating.

The air heater has an open combustion chamber, which means that all the heat from the combusted gas enters the room, ensuring 100% heater efficiency.

  • World first innovation of direct fired space heater
  • It has two separate blowers, one is combustion blower, another is circulating fan. So combustion air can be drawn in from outside therefore no hypoxia happens.
  • Natural gas or LPG.
  • Rates 100/170/240 x1,000 Btu/hr or 30/50/70kW.
  • The 12VAC low-voltage ignition controller, specially developed for HVAC industry, all troubleshoots can be easily identified by the indicator lights.
  • Safer and reliable low-voltage 24 VAC combination gas valve with 100% shut off.
  • Flameout protection, fan malfunction protection, and overheating protection.
  • Indoors or outdoors installation.
  • Poultry house heating power(kW) =volume(m³)*0.07kW/m³
  • In order to ensure the temperature uniformity of the chicken house, usually 6-8 sets of 50kW heaters are recommeded for the 100m long chicken house, and 8-10 sets of 50kW heaters for the 120m long chicken house.
  • This product is suitable for brooding in poultry houses, and it is particularly effective when installed outdoors in caged chicken houses;

Typical Layout of Outdoor Installation of Dual Positive Space Heater

APPLICATIONS

Agricultural Heating Uses

  • Swine houses
  • Poultry houses

ADVANTAGES

  • Easy and cheap.
  • Simple installation and operation.
  • All thermal energy used will come into the broiler house and there are no flue losses
  • Quick solution for heating livestock barns.
  • No need for a heat distribution network.
  • Simple to control with a thermostat or most environmental controllers.
  • Exceptional reliability and durability.
  • Easy maintenance.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

The thermostat calls for heating. The circulation fan starts and the ignition control system starts to ignite and burn. The combustion products are mixed with the heated circulating air to achieve the purpose of heating.

The air heater has an open combustion chamber, which means that all the heat from the combusted gas enters the room, ensuring 100% heater efficiency.

  • Vacuum system, circulation air including combustion air are pulled through the system.
  • Natural gas or LPG.
  • Rates 100/170/240 x1,000 Btu/hr or 30/50/70kW.
  • The 12VAC low-voltage ignition controller, specially developed for HVAC industry, all troubleshoots can be easily identified by the indicator lights.
  • Safer and reliable low-voltage 24 VAC combination gas valve with 100% shut off.
  • Flameout protection, fan malfunction protection, and overheating protection.
  • Indoors or outdoors installation.
  • Heating power of pig house(kW)=volume(m³)*0.04kW/m³
  • Heating power of poultry house(kW)=volume(m³)*0.07kW/m³
  • The temperature in a house with a well-designed forced-air space heating system is relatively uniform from floor to ceiling and around the house. Poultry houses and pig houses commonly are rated 30kW to 70kW. The industry standard is to provide around six to eight heaters in a 120 long broiler house, rather than four large heaters. This improves heat distribution in the house.
  • Large heaters are only marginally more expensive than units with half the kW capacity, so it is common to over-design for houses that will contain brooding chicks.
  • Space heaters operate at low gas supply pressures. Heated air is distributed with the heater fan and through mixing with the incoming ventilation air jet. Maintaining warm temperatures near the floor during early brooding is a common problem with space heaters.
  • Broiler management guidelines recommend starting air temperatures of 32–35°C at day 1. Every day thereafter, the guidelines recommend decreasing air temperature incrementally until a final temperature of 19–21°C is reached at around day 27 and maintained for the remainder of the growout.
  •

APPLICATIONS

Commercial&Residential Heating Uses

  • Families
  • Offices
  • Warehouses
  • Schools
  • Stores

ADVANTAGES

  • No hypoxia, No CO poisoning compared with vent free space heaters (infrared heaters or blue flame heaters) on the market.
  • Annual gas fuel savings up to 20-30% compared with wall-hung boiler system.
  • Much bigger power input than electric room heaters.
  • Simple installation and operation.
  • Quick solution for heating small individual spaces, such as families, offices, stores.
  • No need for a heat distribution network.
  • Simple to control with a thermostat.
  • Easy maintenance.

INQUIRE ABOUT PRODUCT

HOW IT WORKS

This kind of gas room heater is a stand-alone appliance serving to heat an individual small space and capable of operating on propane or natural gas.

The equipment usually includes a heat exchanger, through which a fan blows air from the room to be heated.

Combustion air comes from outside is preheated when the flue is forced to be discharged outdoors, so there is no worries of hypoxia and CO poisoning.

  • Natural gas or LPG.
  • Rates 5/7/12kW
  • Wall mounted or free-standing installation
  • Combustion air comes from outside is preheated when the flue is forced to be discharged outdoors
  • Room air is heated quickly with high efficiency by forced circulation
  • 12VAC/24VAC low voltage control system
  • Easy operation control panel on heater with separate remote-control device and timer
  • Overheating protection, flame monitor, exhaust pipe clog protection
  • Heating area: 20-70m2

Heating Area Volume & Climate Zone

The required kW output required is primarily dependent upon the area to be heater and the climate zone in which you live.

The following rough guide assumes your ceilings are no higher than 2.4M:

Very Cold Zone: 1kW output required for each 8.5m²

Cold Zone: 1 kW output required for each 10m²

Cool Zone: 1kW output required for each 13 m²

Mild Zone: 1kW output required for each 16m²

Adjustment Factors

The indicated gas heating areas would be adjusted down by 5% for each of the following conditions: house built on pillars (non-slab), no carpets on floors, no drapes on windows or a ceiling height exceeding 2.4m. Deduct an additional 10% if the area does not have ceiling insulation. Please note that this is only a guide and individual home designs and situations may vary.

Gas Heater Sizing Example #1:

You live in the Cold Zone and you want to heat an area 5m X 10m, which equals 50m².

Because 1kW will heat 10m², you should need a heater with a 5kW output.

Gas Heater Sizing Example #2:

Same as the previous example but in this case your ceilings are over 2.4m and you have wood flooring instead of carpeting.                            You would need to deduct 5% for each of these two items. So, instead of 1 kW heating 10m², it would heat 9m² (10% total reduction). This means you would need a heater with 5.6 kW of output (50 ÷ 9).

  • The minimum clearance between the room heater and the combustibles must meet the manufacturer’s requirements
  • Reserve enough space for maintenance
  • The exhaust pipe is inclined downward by minimum 3°
  • The outdoor part of the exhaust pipe is kept away from combustibles and cannot be covered or shaded by snow
  • When installing on the wall, the bottom of the heater is 200-500mm away from the ground
  • Gas leaking alarm and emergency gas shut-off valve are highly recommended.
error: Content is protected !!
